DLN78PC60

Series 8 Canopy cooker hood 70 cm Black
DLN78PC60

₫19,900,000
Recommended retail price
Find a local Dealer
Find a local dealer in your vicinity
DLN78PC60

Series 8 Canopy cooker hood 70 cm Black
DLN78PC60

₫19,900,000
Recommended retail price
Find a local Dealer
Find a local dealer in your vicinity

Technical Overview

Sound power at max. speed (2010/30/EC)
61 dB
Max. air extraction
590 m³/h
Boost position air extraction
800 m³/h
Colour
Black
Material body
Stainless steel
Built-in / Free-standing
Built-in
Width
70 cm

Highlights

Specifications

Width
70 cm
Colour
Black
Installation typology
Built-in
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
170 W
Type of control setting and signalling devices
Button
Number of speed settings
3-stages + intensive setting
Max. air extraction
590 m³/h
Boost position air extraction
800 m³/h
Sound power at max. speed (2010/30/EC)
61 dB
Sound power boost (2010/30/EC)
69 dB
Max. air recirculation
560 m³/h
Boost position output recirculating
760 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Total annual energy consumption
31.0 kWh/annum

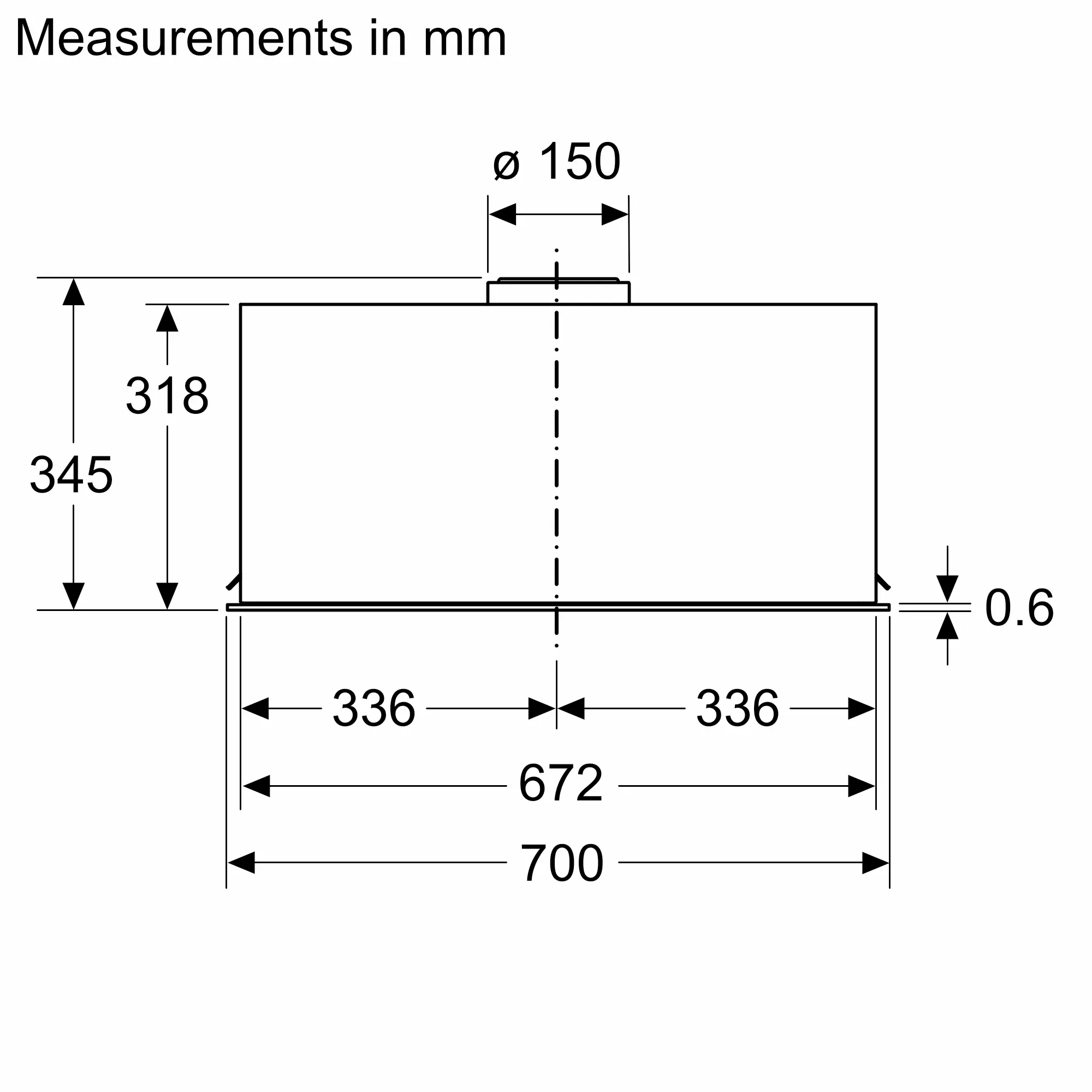

Height of the appliance
345 mm
Width of the appliance
700 mm

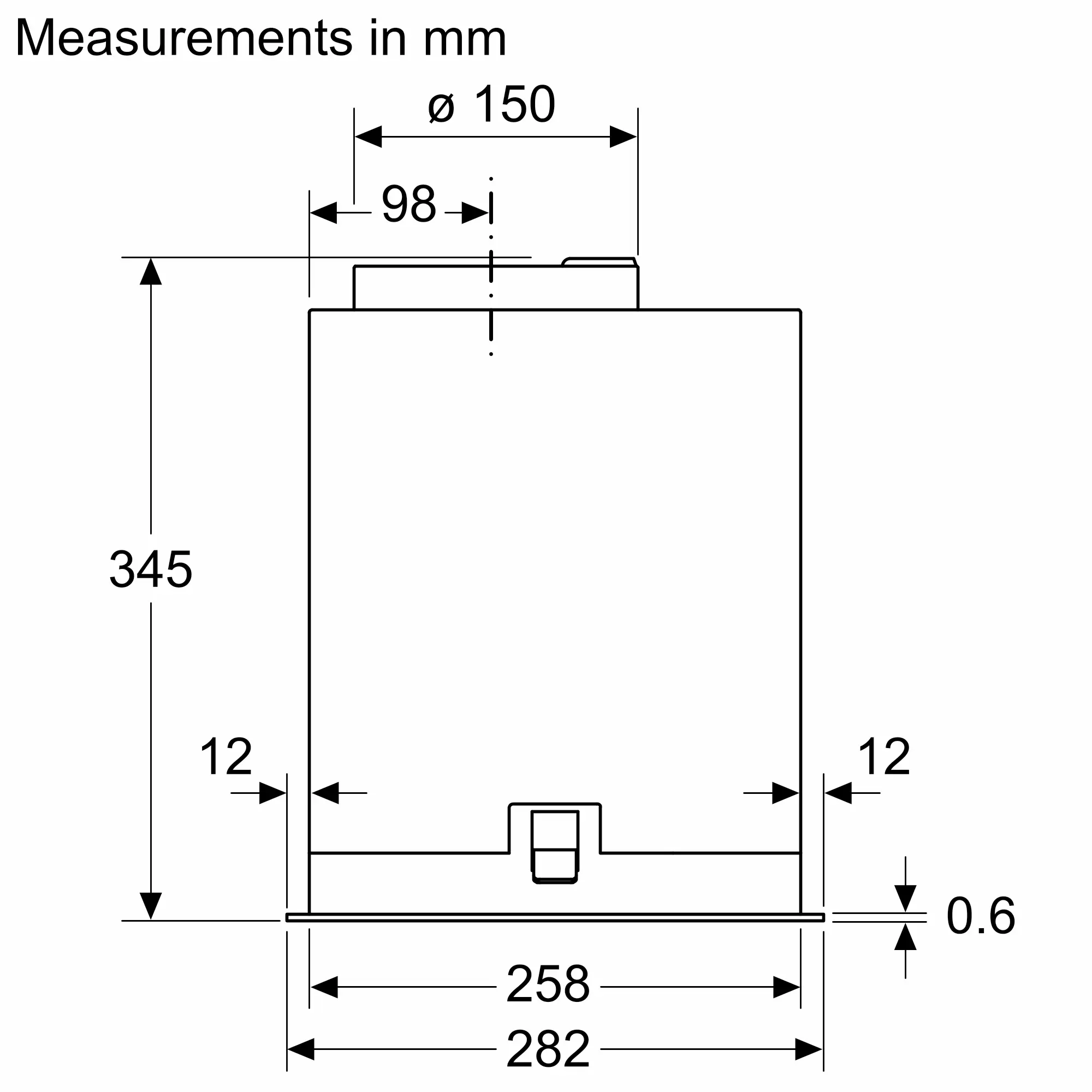

Depth of the product
282 mm
Height of the chimney
GENERAL.N_A mm

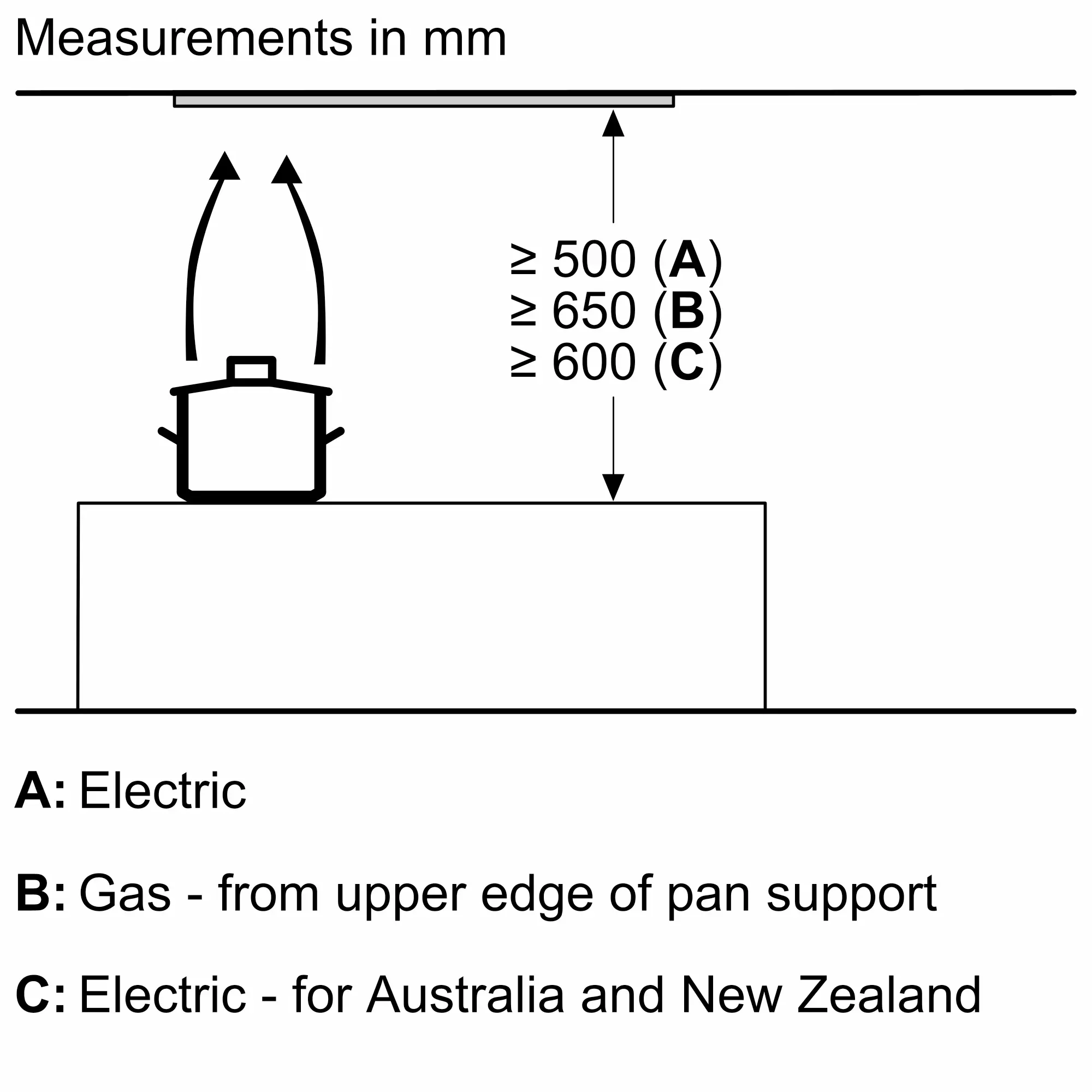

Minimum distance above an electric hob
500 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
150 cm
Net weight
11.1 kg

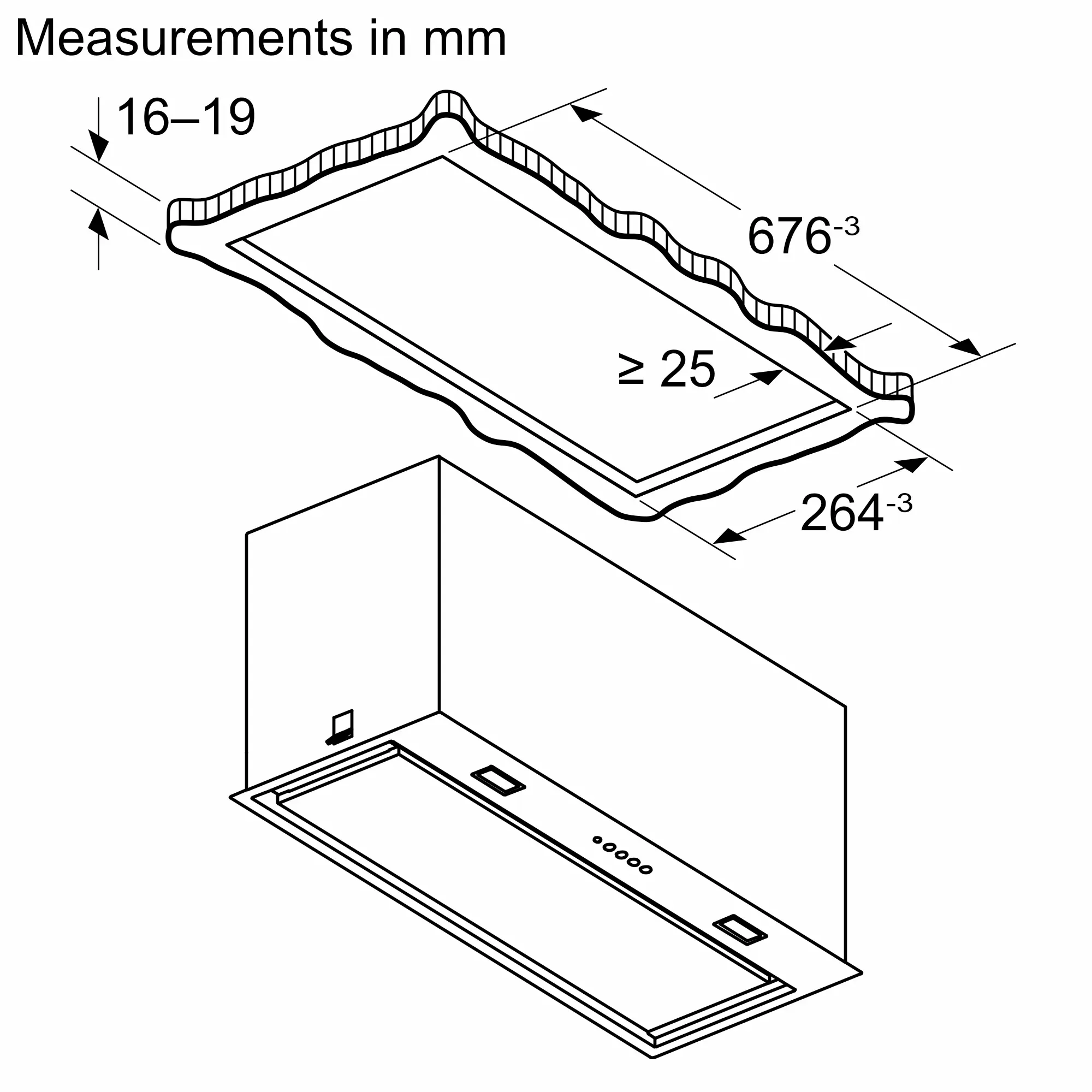

Minimum width for installation
676 mm
Maximum width for installation
676 mm
Depth for installation
264 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Photo Nr. 4 of the product
PerfectAir
No
Extremely quiet and powerful brushless BLDC motor
Yes
Extremely quiet
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Total power of the lamps
2 W
Color temperature
Neutral (3.500 K)
Ambient light
No
Connected appliances with Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Hob-based hood control
No
